Surface preparation
Ensure the substrate surface is thoroughly clean, dry, structurally sound and free from oil, grease, loose rust or particulate contamination before application.
Fire protection & coatings

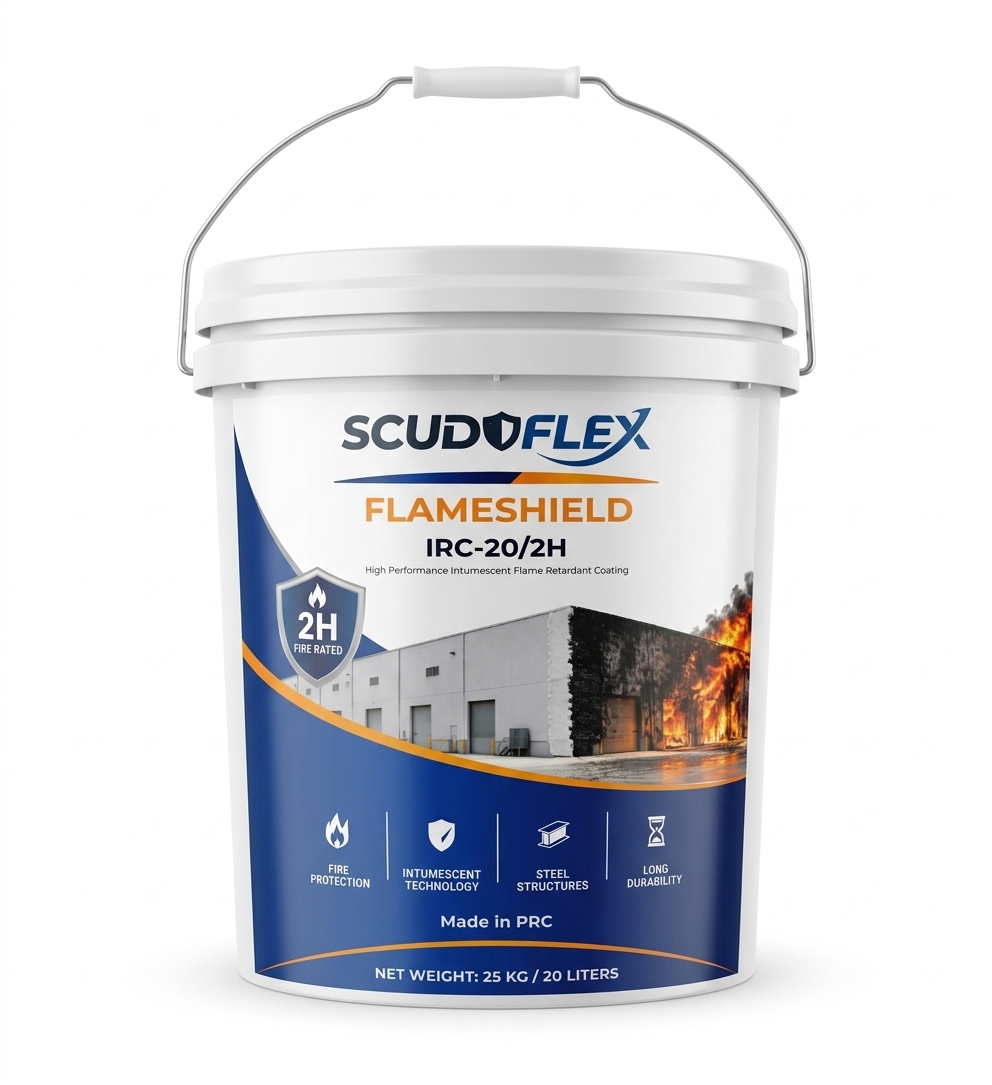

Scudoflex FlameShield IRC-20/2H
High-performance intumescent flame-retardant coatingPremium intumescent coating engineered to provide passive fire protection for high-risk structural and cellulosic substrates.
Up to 2 hoursDirect flame protection
IntumescentExpanding thermal char
+10°C to +60°CSubstrate service range
Product description & overview
Passive protection that forms a heat-resistant barrier.
Scudoflex FlameShield IRC-20/2H is a premium, high-performance intumescent flame-retardant coating engineered to provide superior passive fire protection for high-risk structural and cellulosic substrates. Upon exposure to high heat or direct flame, the coating undergoes an endothermic chemical reaction, swelling many times its original film thickness to form a thick, microporous carbonaceous insulating char layer. This barrier starves the substrate of oxygen and significantly reduces heat transfer, delaying structural breakdown and providing critical evacuation time.
Key features & advantages
Features
- 2-hour direct flame protection: resists direct flame exposure for up to 2 hours when tested to ISO 11925-2 criteria.
- High expansion intumescence: swells rapidly upon heat contact to create a dense thermal char.
- Zero flame spread: categorised under ISO 11925-2 criteria standards with virtually zero flame propagation.
- Microbial and fungal resistance: formulated with biocide additives resistant to fungi, mildew and micro-organisms.
- Smooth finish and sandable: dries to a tough, hard, sandable coating suitable for aesthetic overcoating.
- Versatile substrate adhesion: excellent bond strength to wood, MDF, concrete, gypsum and structural steel.
Recommended applications
Applications
- Cellulosic and timber: MDF, plywood, particle boards, wooden frames and studs, joinery and partitions.
- Structural steelwork: beams, columns, steel reinforcements, ductwork and cable trays.
- Civil infrastructure: fire walls, fire doors, staircases, emergency exits, concrete and gypsum boards.
Technical data
Technical specifications
| Property | Test method / specification | Standard |
|---|---|---|
| Appearance | White / light grey smooth liquid | — |
| Consistency | Thixotropic paint-like liquid | — |
| Solid content | Approx. 76% ± 2% [W/V] | ASTM D1644 |
| Specific gravity | 1.45 ± 0.05 kg/L @ 20°C | ASTM D1475 |
| Drying time (25°C) | Set-to-touch: ~1 hr | Full cure: 4 hrs | — |
| Service temperature range | +10°C to +60°C (substrate surface) | — |
| Wet flammability | Non-flammable in liquid state | ASTM D93 |
| Fire class / rating | ISO 11925-2 / 2-hour flame resistance | ISO 11925-2 |
| Theoretical coverage | 10–12 sq.ft/kg @ 0.5mm wet film thickness | — |
| Recommended WFT | Minimum 0.5mm to 1.2mm DFT total | — |
| Cleaner / thinner | Solvent naphtha / petroleum spirit | — |
| Shelf life | 15 months in sealed containers @ 25°C | — |
Product document
Technical datasheet
PDF technical datasheet
Scudoflex FlameShield IRC-20/2H
Open the technical data sheet on this page or download a copy for your project records.
Application method
Apply via brush, roller or heavy-duty airless spray equipment. For thick builds, apply in multiple uniform coats allowing a minimum inter-coat drying interval of 4 hours at ambient temperature. Perform compatibility checks on specialised primers or existing decorative topcoats prior to full application.
Storage
Store in original, unopened containers in a shaded, well-ventilated area between 10°C and 30°C. Keep away from direct frost and moisture.
Important notice
Scudoflex guarantees product compliance to the published technical specifications when applied strictly per manufacturer instructions. Confirm project-specific requirements and compatibility before specification.
